DeSite SLG-78VF
Portable Topsoil & Rock Screener - Screen top soil, aggregates, gravel, wood waste. Cut dump fees by recycling on-site. Screen your on-site topsoil right where you will re-use it.
Product Description
Now incorporating a Multi Slope Screen Deck. When screening gravel products the deck can be moved from 45 degrees to 30 degree slope position for maximum production and efficiency.
Change the deck slope in 3 minutes. The multi slope screen deck combines maximum production with maximum efficiency.
The SLG-78VF-II is one of the quietest operating screeners in the industry, allowing it to work onsite within urban areas.
Produces up to 20m³ of screened top soil per hour with any small bucket machine. That's $450/hr for material on site and less to cart away! No money in operating trucks.
Change the mesh in 10 minutes, re-screen the oversize, make drainage metal or sub-base material for the driveway or road.
Pick up and shift the screen in a few seconds with any medium sized skid steer loader with optional bucket lift lugs.
Key Features:
- Multi-slope adjustable screen deck (45° to 30°)
- One of the quietest operating screeners in the industry
- Perfect for urban areas
- Produces up to 20m³ of screened top soil per hour
- Change mesh in 10 minutes
- Easy to move with skid steer loader
- Low maintenance design
- Designed to be fed by Skidsteers, Bucket tractors, Mid-size excavators, and Compact loaders
- Portable design - easily moved around worksite
- Perfect balance of capacity and versatility
- Ideal for contractors and landscapers
See it in action at www.youtube.com/c/Idmcabc_inc
Bucket Size Compatibility
Bucket Type: Standard skidsteer and compact loader buckets
Compatible Equipment: Skidsteers, Bucket Tractors, Mid-size Excavators, Compact Loaders
Specifications
Machine Dimensions
- Screen Box Width: 2.5m
- Screen Box Height: 2.2m
- Screen Box Depth: 1.4m
Riser Box
- Riser Box Width: 2.5m
- Riser Box Height: 0.5m
- Riser Box Depth: 1.8m
- Riser Box Weight: 227kg
Weight
- Total Weight – Off Riser: 907kg
- Total Weight – On Riser: 1134kg
Screen Deck
- Screen Deck Width: 2.0m
- Screen Deck Length: 1.3m
- Screen Deck Surface Area: 2.7m²
- Screen Deck Tilt Angle: 45 to 30 degrees
Productivity
- Production Rate: 11-23m³/hour
Mesh
- Available Mesh Sizes:
- Square Pattern: 6mm, 10mm, 18mm, 30mm, 50mm, 100mm
- Elongated Soil Mesh: 6mm x 100mm, 10mm x 100mm
- Optional mesh sizes upon request
- Change the end tensioned mesh in 10 minutes
Assembly
- The SLG-78 VF comes assembled
Screener Features

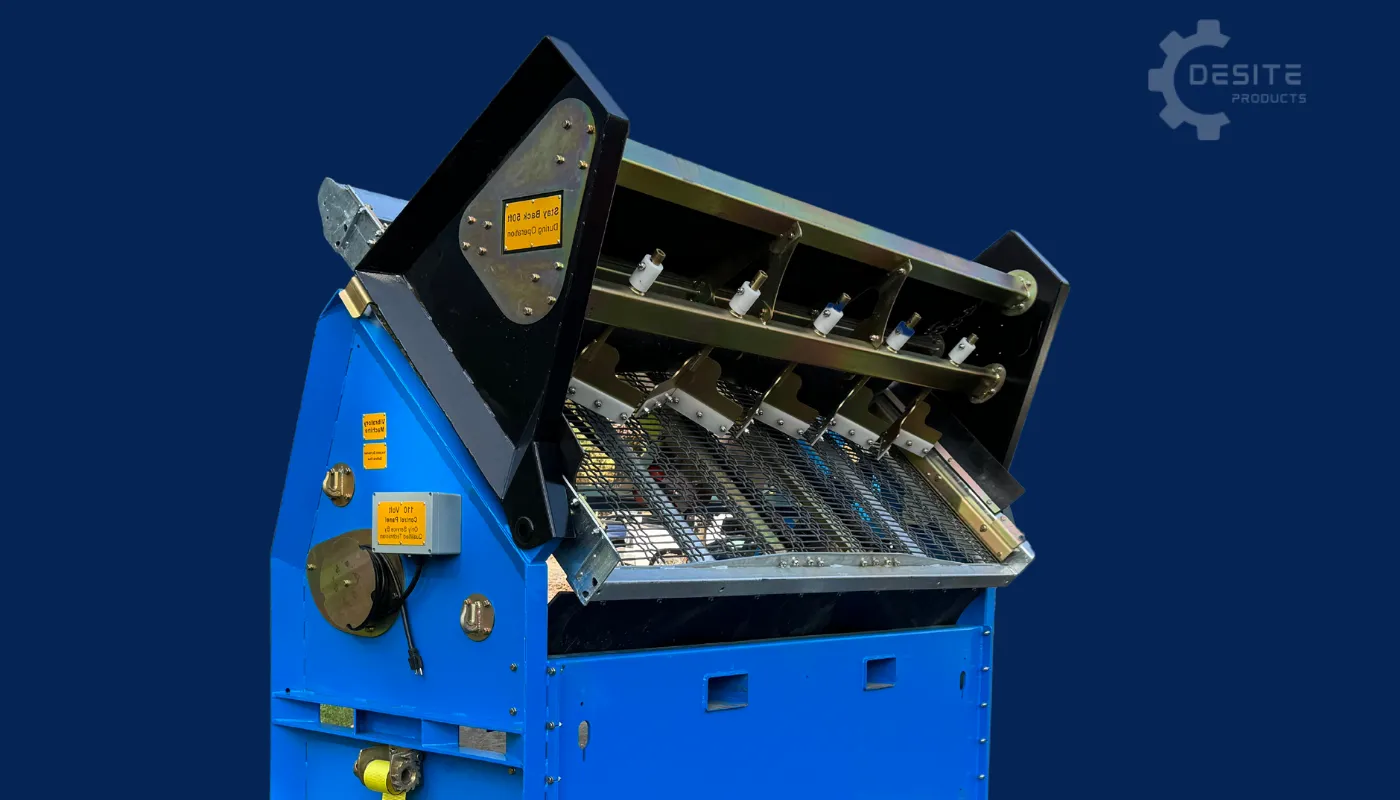

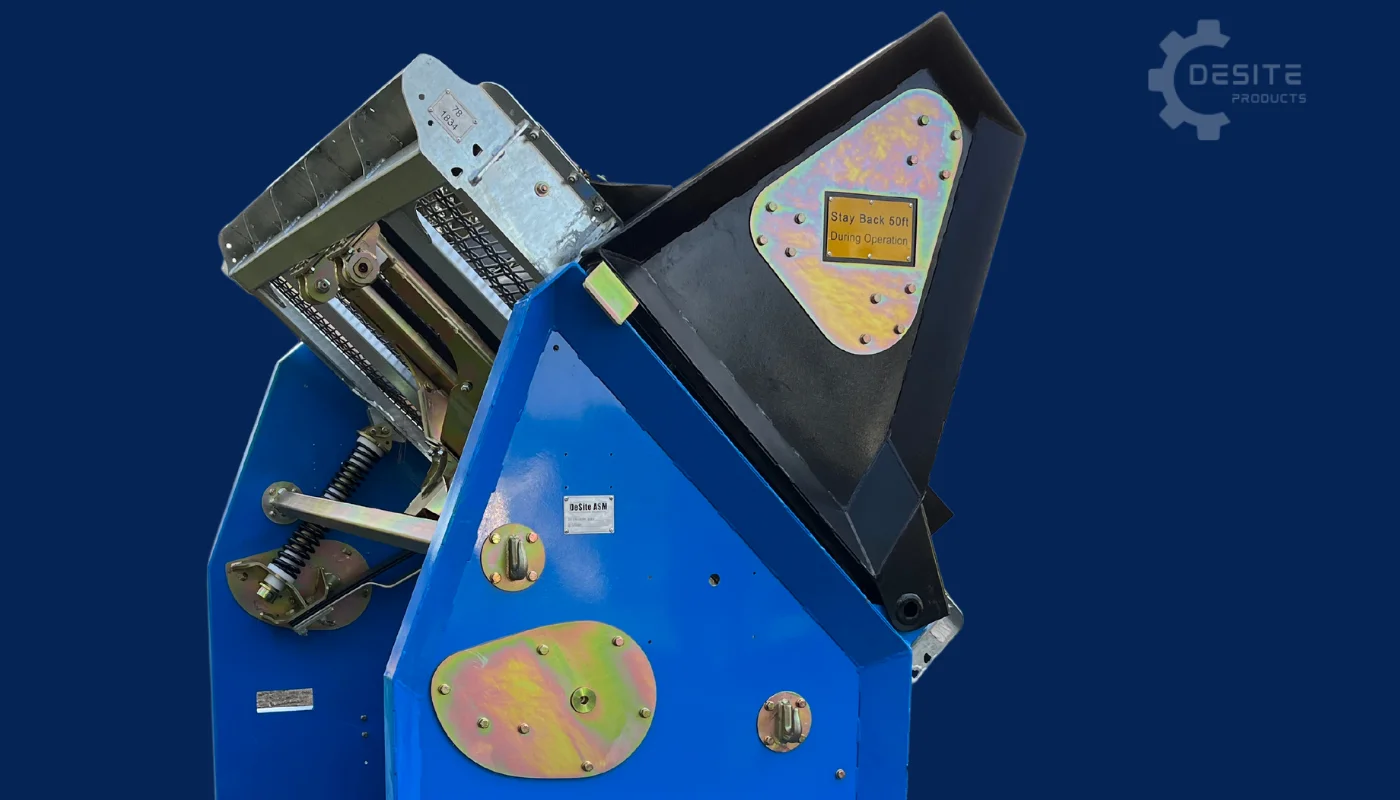

Feed Deflector System
The SLG-78VF comes standard with a swing away rubber faced feed deflector. This feature helps direct material onto the screen deck efficiently, reducing spillage and improving screening performance. The deflector can be easily adjusted or swung away when not needed.

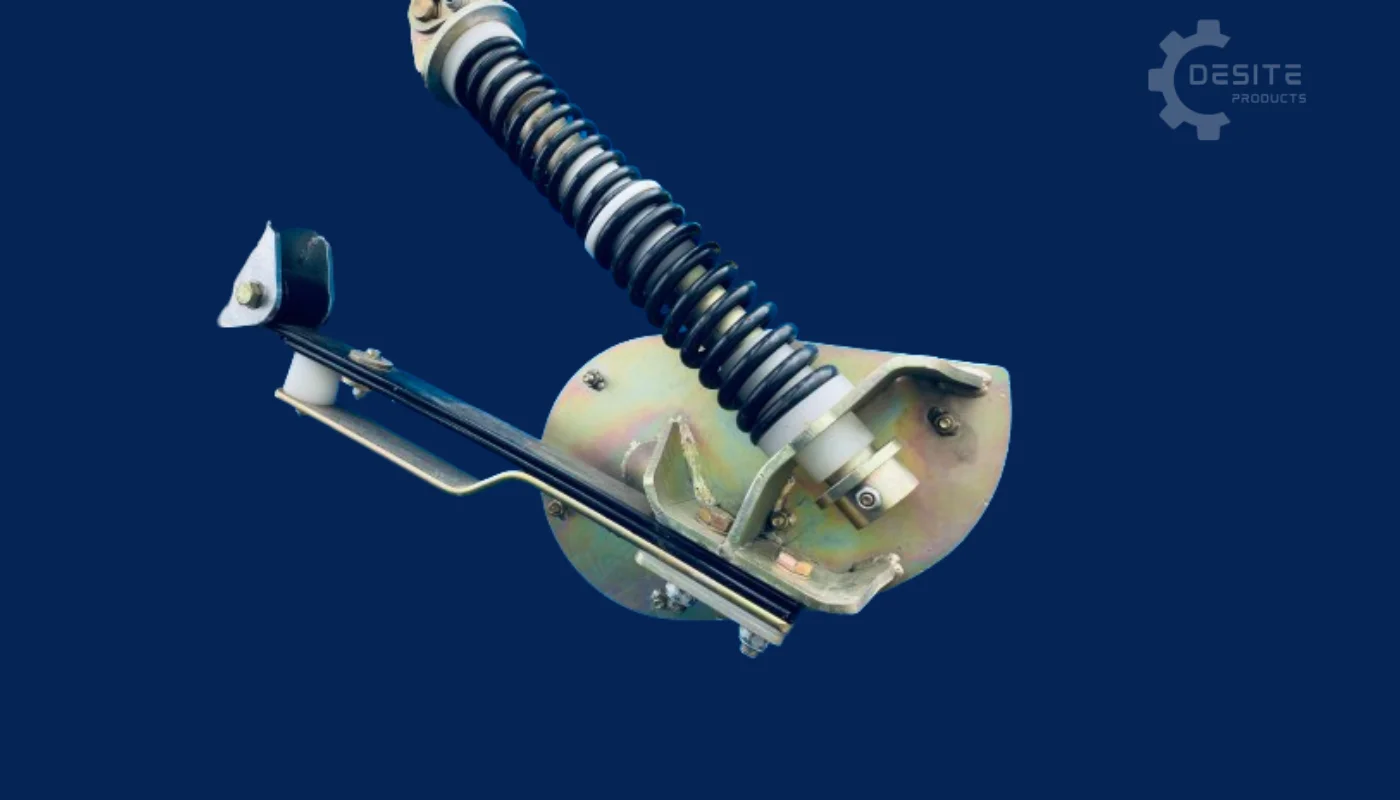

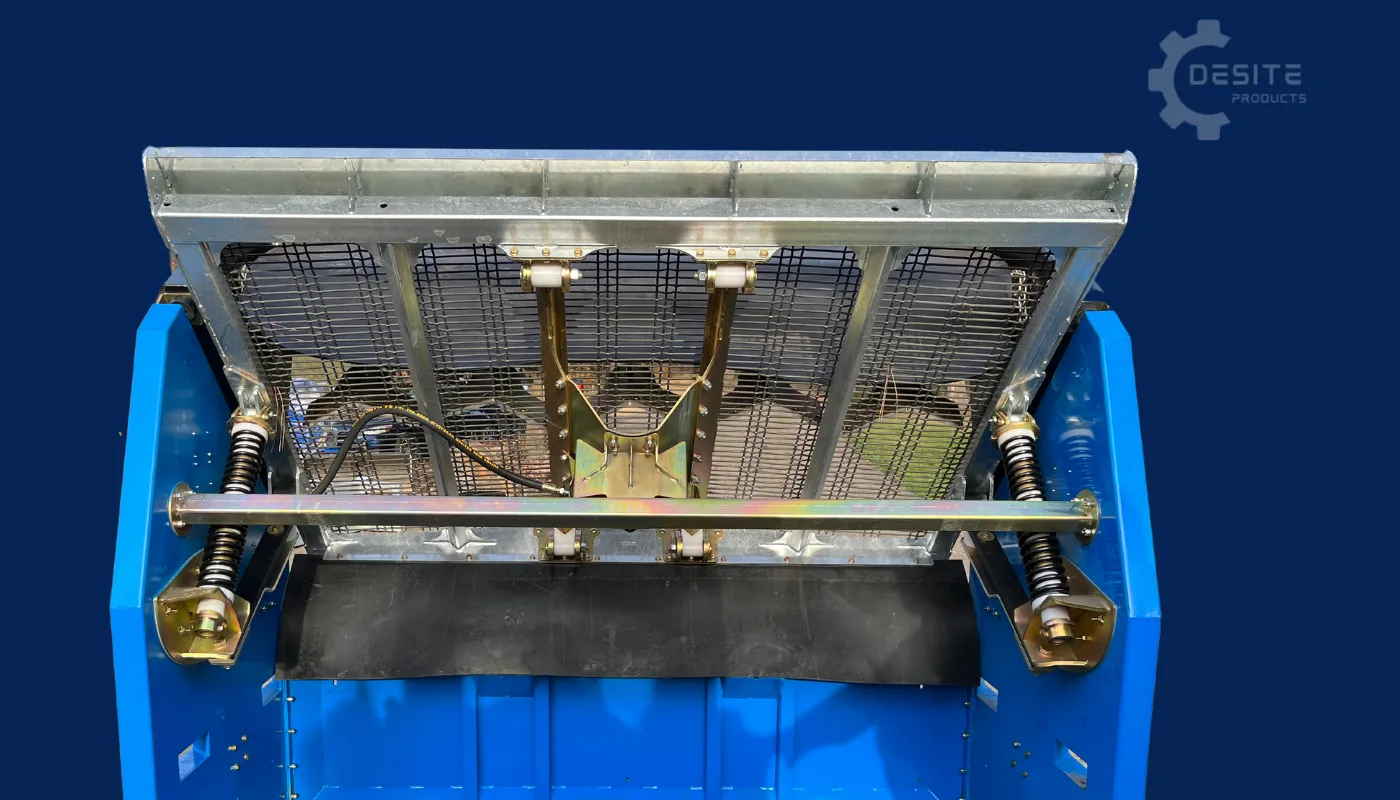

Cantilevered Spring Suspension System
The SLG-78VF features the same advanced Cantilevered Spring Suspension System found in our larger models. This system allows the screener to handle materials with varying moisture content without issues. The action and reaction of this system are essential for achieving optimal screening results, ensuring smooth operation and consistent performance even with challenging materials.

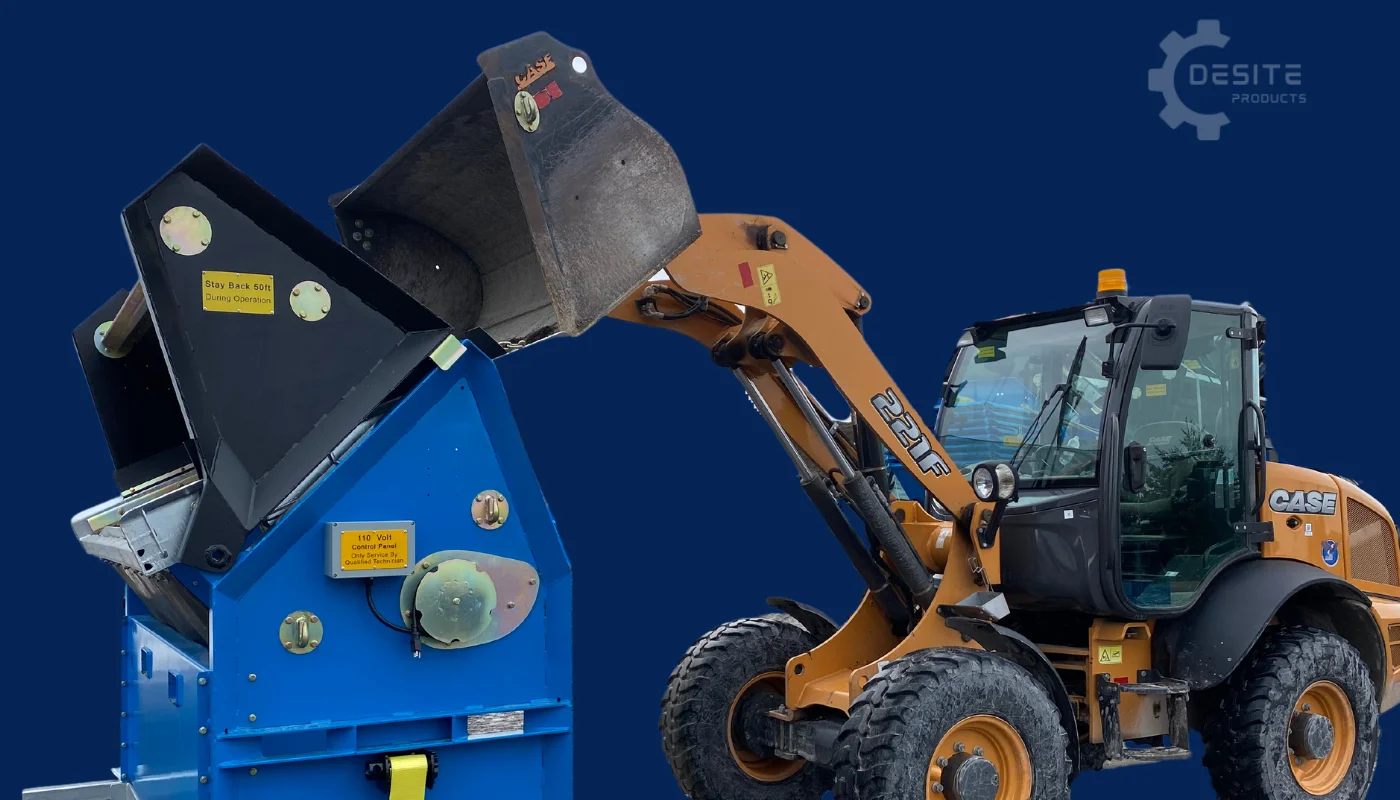

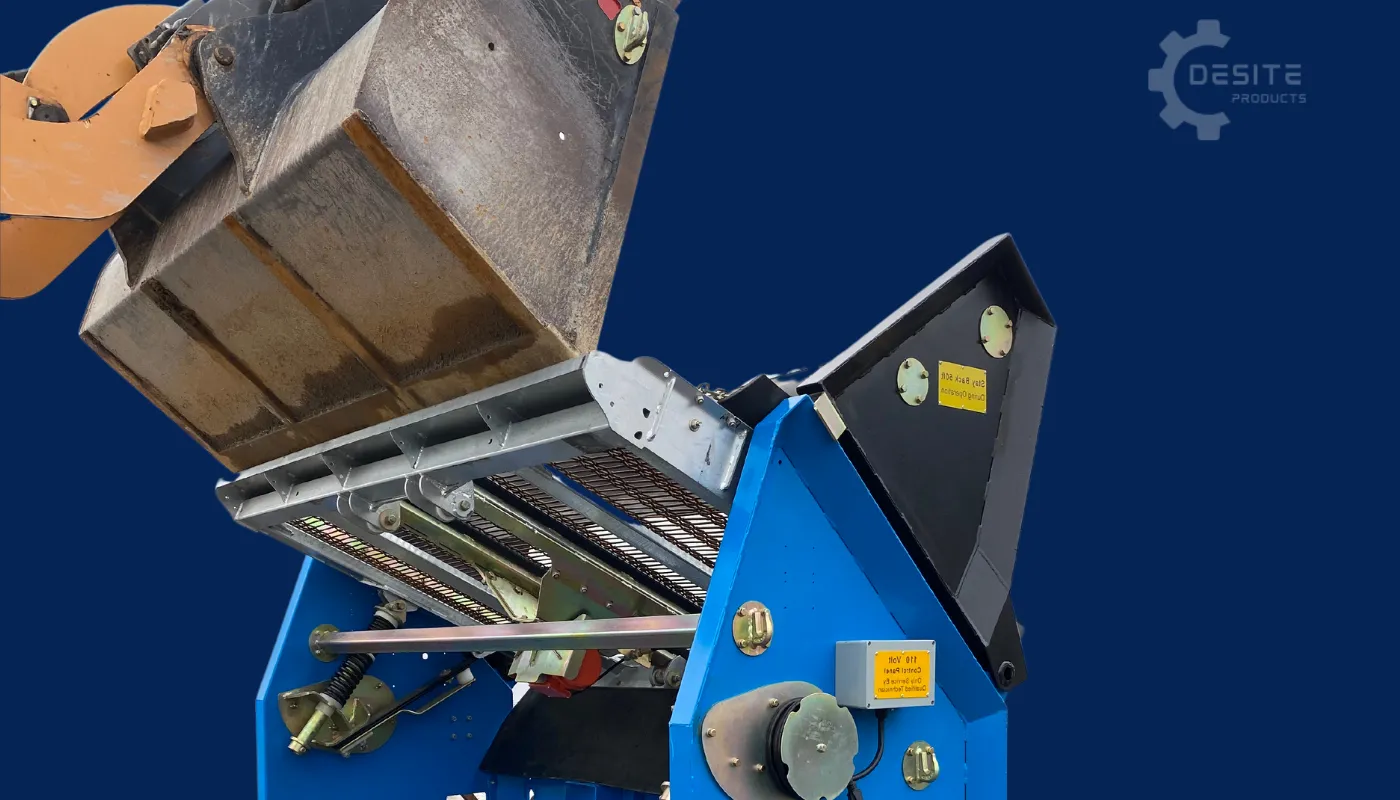

Multi-Slope Tilting Screen Deck
The Multi-Slope Screen Deck can be adjusted from 45 degrees to 30 degrees in just 3 minutes. When screening gravel products, the deck can be moved to the optimal slope position for maximum production and efficiency. This feature, combined with the Cantilevered Spring Suspension System, allows for direct contact between the bucket of your equipment and the screen deck, giving you precise control over the screening process.

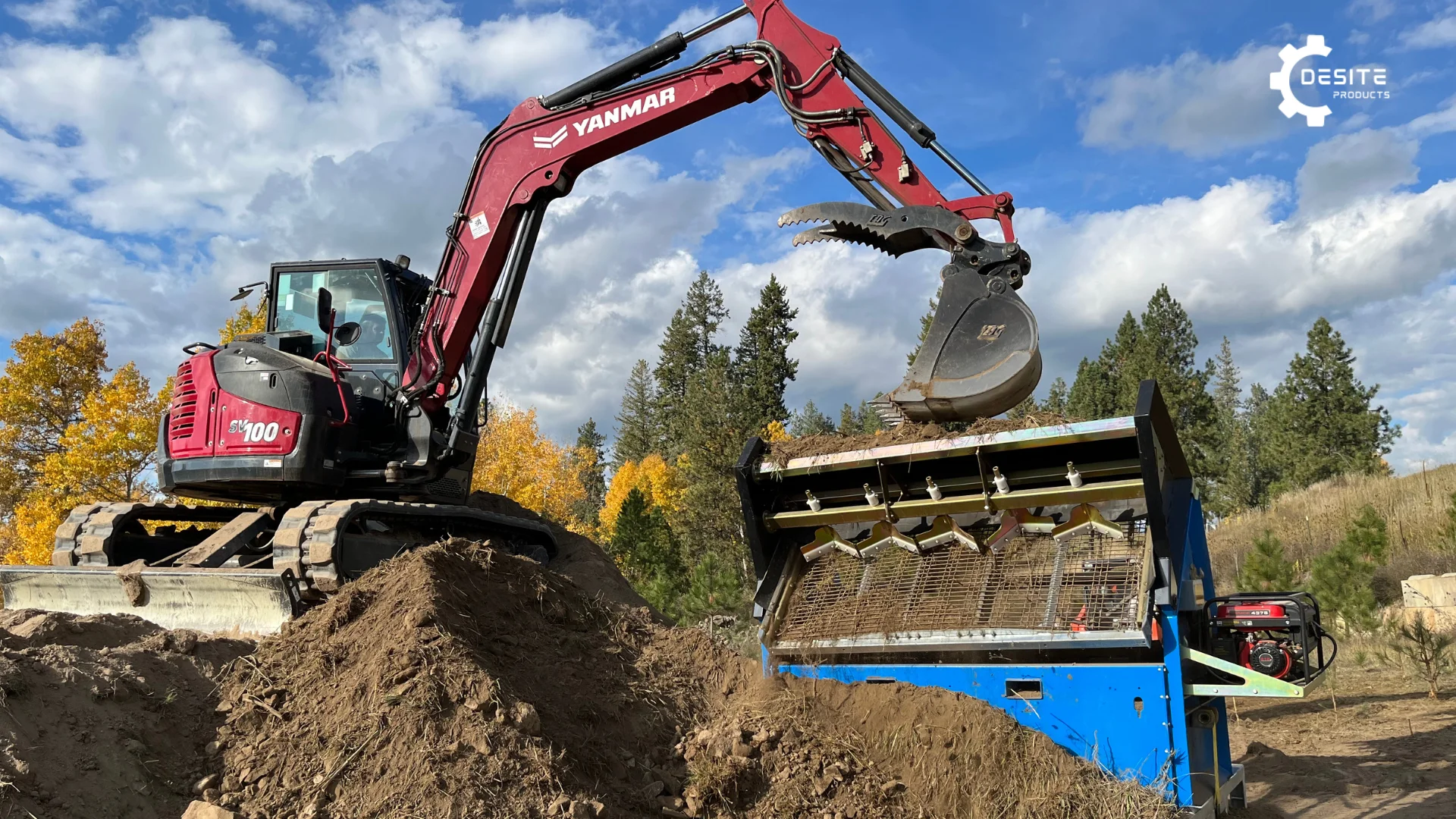

Vibratory System
The SLG-78VF is equipped with a powerful vibratory system that operates at 3600 RPM. The system is one of the quietest operating screeners in the industry, allowing it to work onsite within urban areas. The vibratory motors are sealed away from the elements, making them maintenance-free and highly durable. The system draws minimal power and can operate on a standard 240v 50Hz circuit or a portable generator.
Riser Box (Optional Accessory)
The Riser Box is designed to boost productivity by allowing you to handle more material, ultimately increasing the efficiency of your screening operations. It also stabilizes the movement of the screener, ensuring smoother and more consistent performance. Equipped with winches and 2-inch straps, the Riser Box can be easily installed or removed in less than five minutes, making it a convenient and practical addition to your equipment.
Bucket Transport Lugs (Optional Accessory)
Like other models in our lineup, the SLG-78 Static offers optional Bucket Transport Lugs. These lugs make transporting and moving the screener as easy and stress-free as possible, ensuring smooth and efficient mobility even in challenging or tight locations. This feature enhances the portability of the machine, making it easier to navigate difficult job sites using your equipment's bucket.
Pricing (Estimates)
Complete Assembled Unit. Adjustable angle Screen Deck with 20x100mm elongate mesh, 240v 50htz vibration, swing away rubber faced feed deflector, sloping legs to adjust the screen angle and loader extensions to pick up the unit with a bucket cutting edge. Ex Nelson. Price does not include shipping or delivery. Delivery will be arranged with the purchaser and additional charges may apply depending on location.
Additional Options:
- Riser Box
- Additional Screen Mesh(s)
- Bucket Transport Lugs
Please contact us for current pricing and delivery options to your location.
What Can You Screen?
Soil & Organic Materials
- ✓ Sand
- ✓ Topsoil
- ✓ Compost
- ✓ Wood Mulch
Stone & Aggregate
- ✓ Pea Stone
- ✓ Septic Rock
- ✓ Road Gravel
- ✓ Landscape Stone
Recycled Materials
- ✓ Ground Asphalt
- ✓ Crushed Concrete
- ✓ Erosion Control Rock
- ✓ Traction Sand
